Description

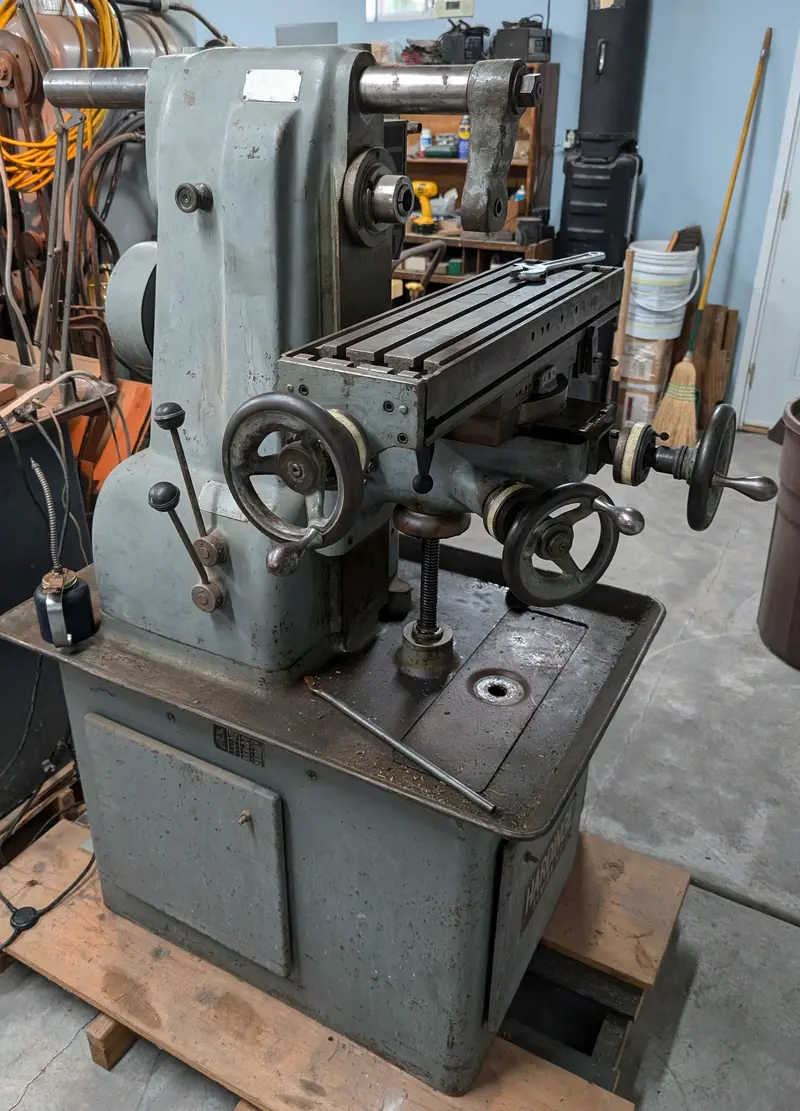

Very nice “dial” type Hardinge UM high speed precision universal milling machine with a swivel table, powered table feed, arbor support, over-arm, coolant sump and pump in very nice condition. What is pictured is what is for sale, this machine does not include a vertical head. The machine is graduated in inches and is fitted with a 1.5HP Leeson Micro series VFD 115/230V 1PH input. You can plug this mill into a wall outlet and make chips immediately. I bought this mill ~25+ years ago for a single job and I haven’t used it much since. You can pick this up at my shop in Tucson, it is on a pallet and I have a pallet jack and jib hoist if you have a truck with a lift-gate.
Model UM
Serial No. 29272
Overall Table Size: 6-1/2″ x 25″
Working Surface Of Table: 6-1/2″ x 20-3/4″
Table Feeds: (32) 1/8″ – 13″ IPM
Longitudinal Travel: 14″
Transverse Travel: 5-1/2″
Vertical Travel: 13-1/4″
Spindle Speeds: (8) 110 – 1850 RPM
EQUIPPED WITH
1 HP, 3ph motor and a 1.5HP LEESON Micro series VFD 115/230V 1PH input
Swivel Table
Arbor Support Casting
Approximate Weight: 1500 Lbs.
F.O.B. Tucson, Arizona
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
