Description
The KX 250 model grinding machine is available with grinding lengths ranging from 1000mm to 7100mm. Featuring a high-power grinding wheel motor, the KX 250 is suitable for both surface grinding and knife sharpening with heavy-duty reinforced machine base and fully covered guides.
Specifications:
- Rotating magnetic chuck from -90° to +90° (Polarity 20 mm)
- Angular divisor for magnetic chuck
- Grinding motor 7.5 kW (10 HP)
- Segment holding ring Ø250

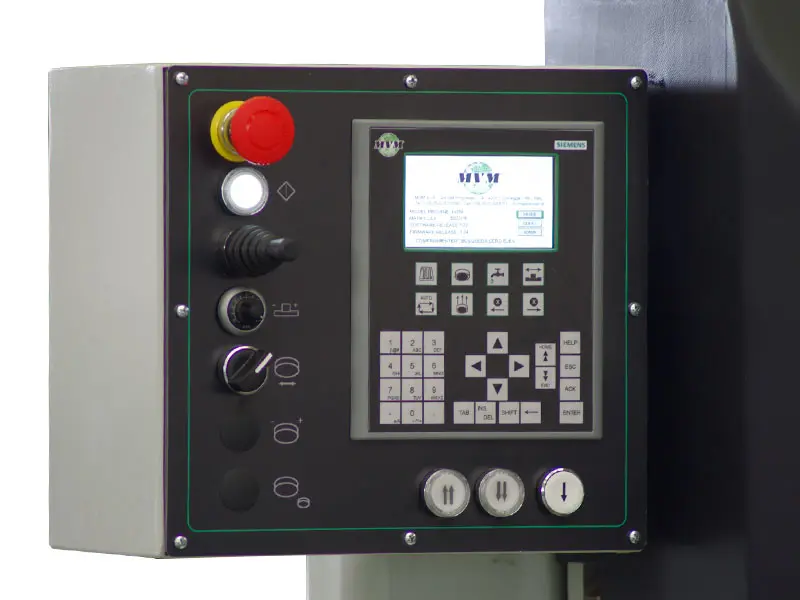

- PLC Siemens SIMATIC S7-1200
- Variable carriage speed from 1 to 30 m/min
- Automatic grinding wheel downfeed and fully programmable working cycle
- Longitudinal grinding head angle adjustment from 0° to 3°
- Grinding wheel quick up and down approach, and slow down approach
- Separate coolant collection tank fitted with 80 l/min motor pump
